Sirius Pixels Convert
Video Resolution Conversion Program
Unique Features
Interlaced to Progressive Conversion
  • 3 modes: Film / Video / Inv 3:2
    • Film mode has Pixel level Inverse 3:2 detection and applied
    Inv. 3:2 for part of single frame at pixel level for excellent Interlace to Progressive Conversion
    Resolution Conversion (Up or Down)
  • Supports up to 4Kx2K (4096x2160)
    • Ultra Smooth and sharp "jaggy-less" Up converter
    Unique Filters
  • Non Linear
  • Blur (Tone Jump elimination)
  • Sharpen - option to eliminate "overshoot" side effect
    • Layered Filtering
  • Divides Image into 2 layers: Framework and Texture
    • Filters can be set up for each layer and then synthesis each result to make the final image

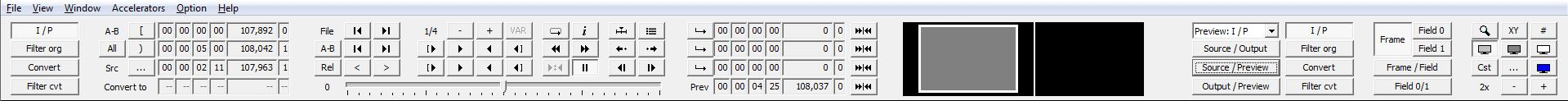

    Control Window User InterfaceSP Convert Control Window User Interface
    Calling setting windows

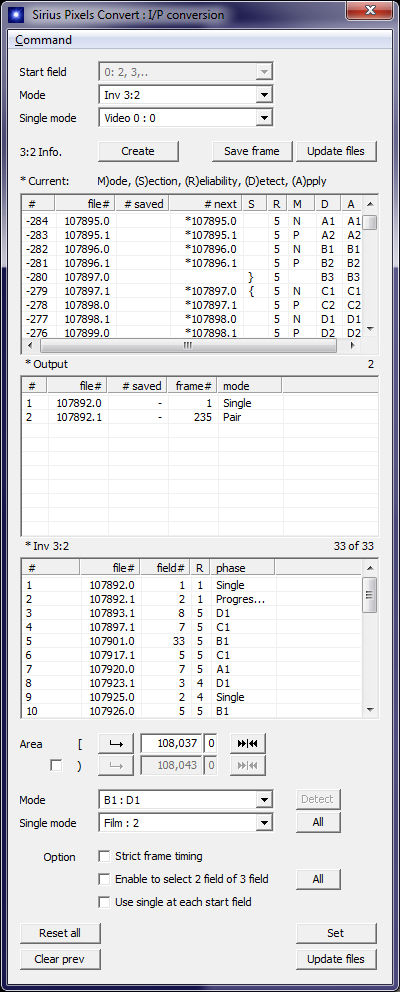

    [I/P Conversion]    ScreenshotInterlaced to Progressive resolution conversion
  • 3 modes: Film / Video / Inverse 3:2
  • Film mode offers 4 different algorithm methods for conversion.
  • Video mode offers 8 different algorithm methods for conversion.
  • Inv. 3:2 Mode allows you to create an info.3.2 file so that you can check your cadence and make corrections

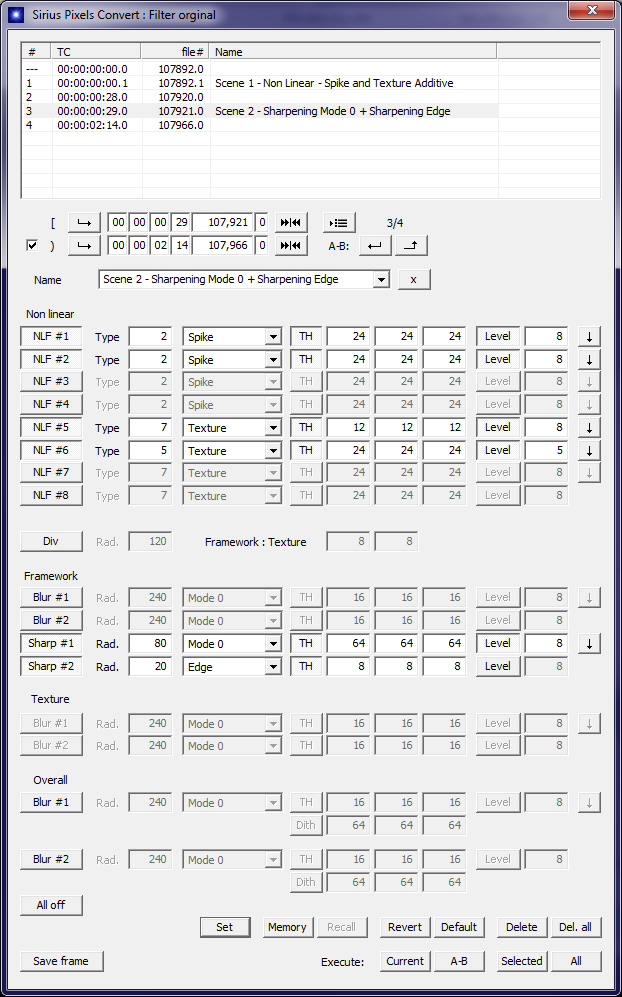

    • [Filter Orig]    ScreenshotAbility to apply filters after your I/P conversion
  • Up to 8 Non Linear filters of spike and texture with various levels of thresholds. All of which are additive.
  • Blur Filter for Tone jump elimination and Sharpen has the option to eliminate "overshoot" side effect

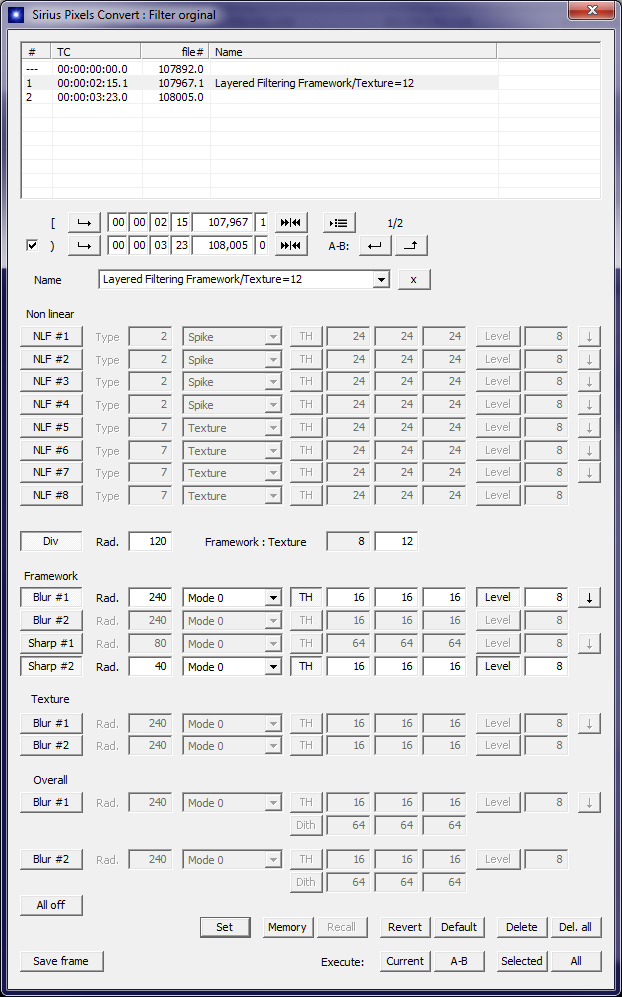

    • Layered Filtering    Screenshot
  • Divides image into 2 layers of Framework and Texture.
    • Filters can be set up for each layer and then synthesis each result to make final image

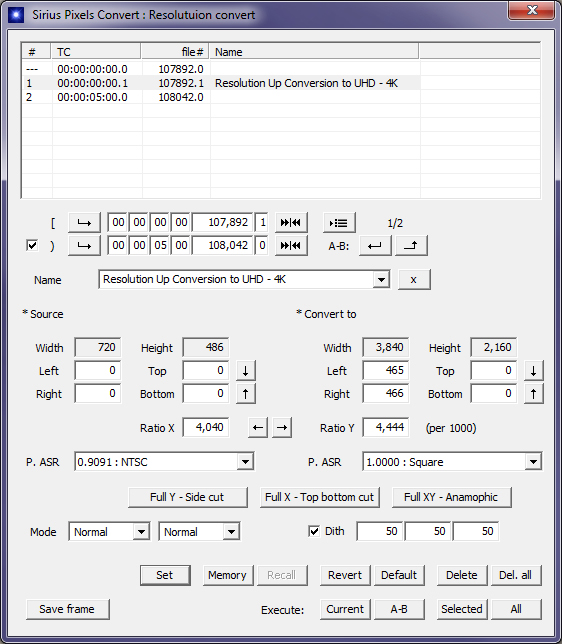

    [Convert]    ScreenshotUp/Down Resolution Conversion Program
  • Ultra smooth and sharp "jaggy-less" results
  • Support up to 4096x2160 and downconversion to 320x240

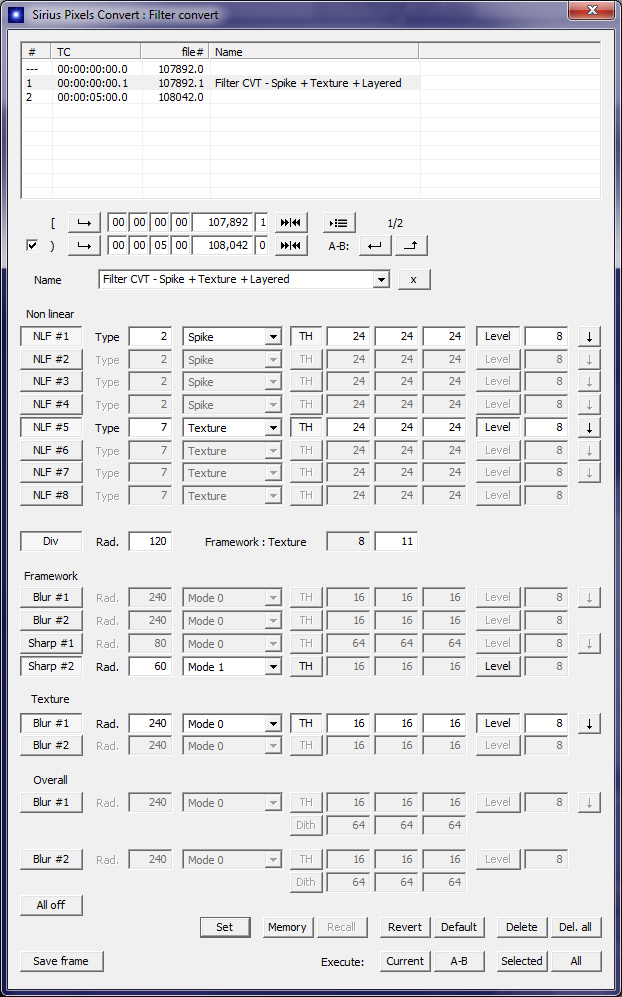

    • [Filter cvt]    ScreenshotAbility to apply Filters after your Resolution Converted Result
  • Up to 8 Non Linear filters of spike and texture with various levels of thresholds. All of which are additive.
  • Blur Filter for Tone jump elimination and Sharpen has the option to eliminate "overshoot" side effect
    • Layered Filtering
  • Divides image into 2 layers of Framework and Texture.
    • Filters can be set up for each layer and then synthesis each result to make final image
    Additional Features
    Setting Pictures' Temporal PositionSpecify and displays pictures' current temporal location. A-B function allows the user to set the temporal range of A-B pictures and to handle the range efficiently
    Recoding Pictures' Temporal PositionTimecode or frame entry and chase scratch pad
    Playback Functions and Jump ControlsExtensive variable picture review playback controls and speeds

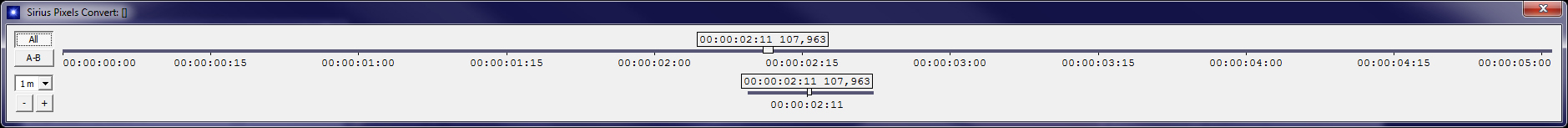

    Frame Finder    ScreenshotFrame Finder is used to find a frame by scanning pictures with a slider control (Scrubbing)
    Magnification Window ToolA new improved Magnification Window Tool around the cursor point, for analyzing source, preview, and output, with magnification up to 32x
    XY Axis Scope    ScreenshotA new XY Axis Scope graphically displays the 64 pixels values of X and Y axes around the cursor point and their R, G, B values

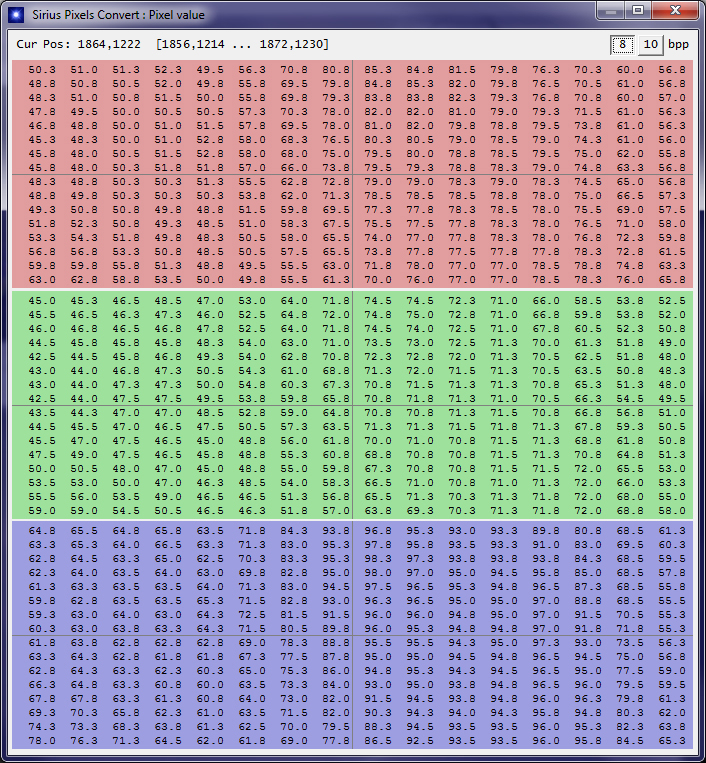

    Numeric Scope    ScreenshotA new Numeric Scope numerically displays the 16 x 16 pixel values around the cursor point and their R, G, B values

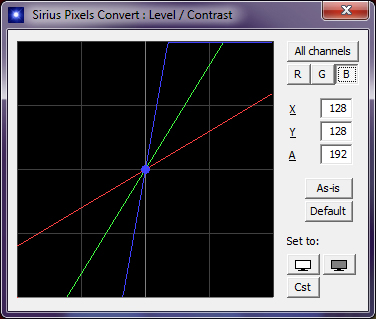

    Picture Analysis Tools    ScreenshotMagnification: up to 32x
    As is
    Custom
    Display
    Dark Mode
    Bright Mode
    Blue Only Mode
    Picture Display SettingSource / Output
    Source / Preview
    Output / Preview
    Enable Preview FunctionalityI/P - enables I/P conversion preview
    Filter Orig - enables preview of your Filters Original Settings applied to the source
    Convert - enables preview of your Up/Down Conversion of your source
    Filter cvt - enables preview of your Filters settings to your converted result
    A-B FunctionAllows the user to set the temporal range of A-B pictures and to handle the range efficiently
    Pictures' Display Field SettingSpecifies whether to display pictures as frames or as fields
    VPKVideo Playback Kit with HD-SDI or HDMI Output for External Monitor
    Sirius Pixels Convert Software Specifications

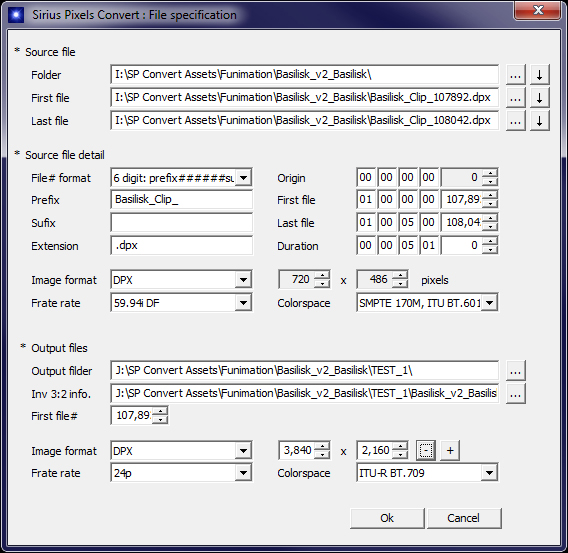

    Input Image File Formats
    Screenshot
    DPX files (*.dpx)
    Cineon files (*.cin)
    TARGA files (*.tga)
    Bitmap files (*.bmp)
    Accom WSD/HDi files (*.hvd)
    Accom WSD/HDe files (*.hvu)
    Abekas YUV file (*yuv)
    Output Image File Formats
    Screenshot
    DPX files (*.dpx)
    Cineon files (*.cin)
    TARGA files (*.tga)
    Bitmap files (*.bmp)
    Accom WSD/HDi files (*.hvd)
    Accom WSD/HDe files (*.hvu)
    Abekas YUV file (*yuv)
    Frame Size Resolution Conversion
        InputDepends on Input Format
        OutputDepends on output specified
    Frame Rate
    59.94i NDF
    59.94i DF
    50i
    23.976p
    24p
    25p
    30p
    29.97p
    59.94p
    60p
    50p
    Sirius Pixels High Definition Encoder Hardware Specifications
    CPU2x Sandy Bridge 2.90GHz Intel Xeon Processor E5-2690
    Memory64GB
    HDD for system2TB
    HDD for storage16TB configured as 2x 8TB (RAID 0, 4x 2TB)
    Sirius Pixels Video Playback KitHDMI/HD SDI video output to an external monitor using a Blackmagic Design Video Card
    Network2x 1000 Base-T (On board)
    OSWindows 7 Professional SP1
